• SUPER BLOC TYPE
• MONOBLOCK TYPE
• FOR SMALL BOTTLE

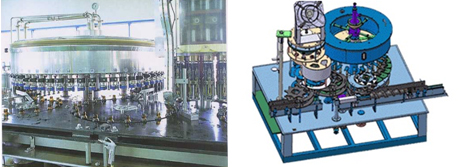

This is a high capacity filler to fill pharmaceuicals, chemicals Liquor, special sauce etc., into small bottle such as health drink bottle and miniature bottle.

• FEATURES

1. ACCURATE FILLING

The filling valve of which the design is based on many years of experience, provides low foaming filling, meticulous consideration for a drip-free valve construction allows highly accurate filling to be achieved.

2. EASY CLEANING

The filling valve constructed from simple parts provides easy cleaning and quick disassembly and reassembly

3. VERSATILE

Various small bottles can be filled just by using the attached changeover.

• PRINCIPLS OF FILING OPERATION

As the bottle on the bottle rest rises and contacts the mouth packing, the vacuum in the filler bowl starts to evacuate air in the bottle via the air vent tube. Simultaneously, the rising bottle pushes the valve housing further upwards. The nozzle is opened and the filling operating starts.
